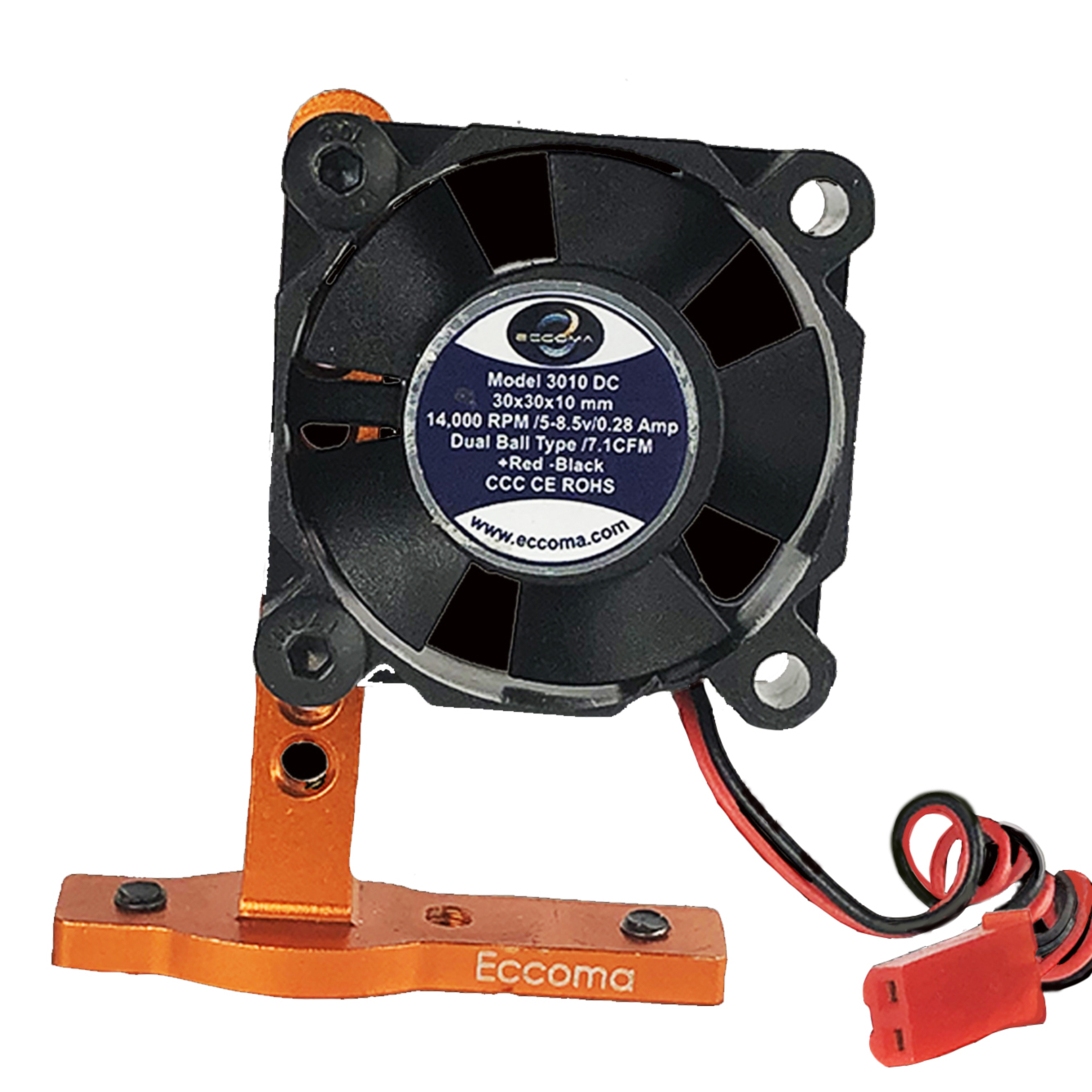

Aluminum Cooling Fan Mount with Double Bearing Fan Ultra Light

This innovative design is created with Aero dynamics concepts to avoid the collision of external elements.



With high performance for high competition.



This Aerodynamic Fan Holder Multiple provides the installation of :  20,25,30,35,40 and 80mm fans witch multiple positions for each type of fans.

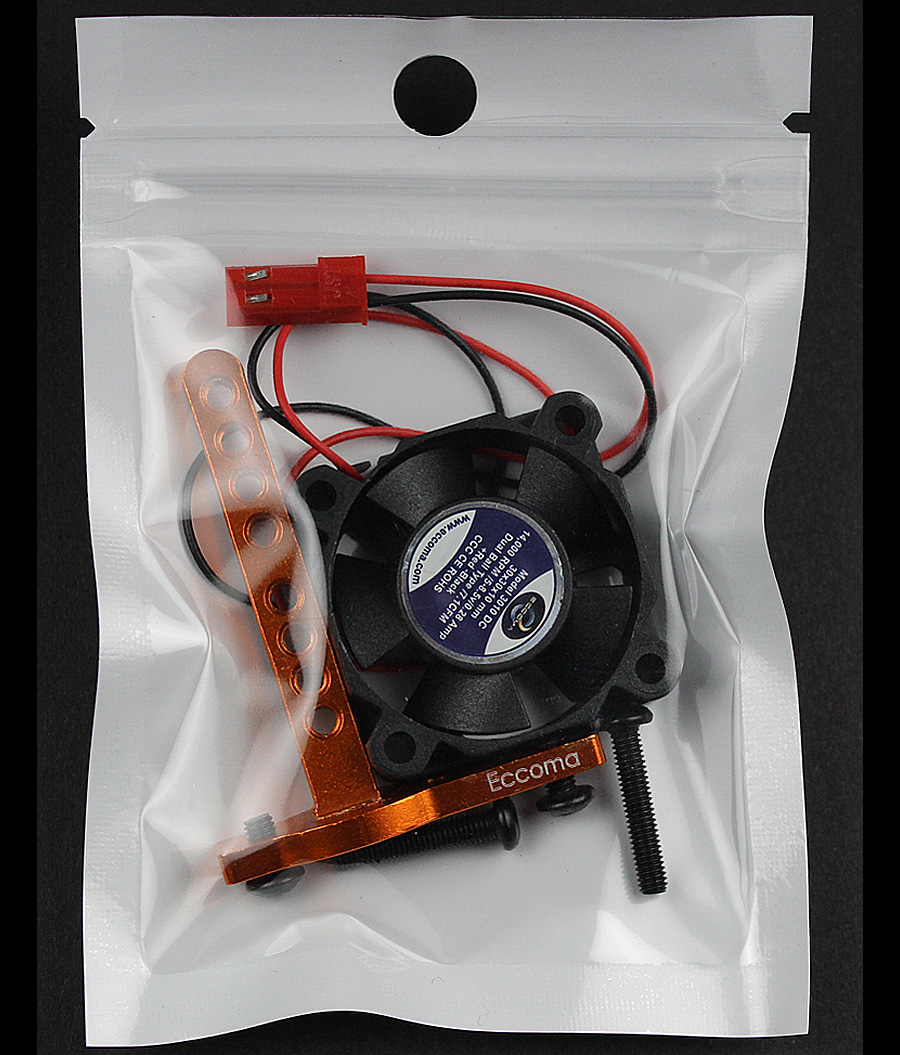

The complete kit includes:



- 1 Orange Aluminum Multiple Handle with 8 for M3-size Holes
- 1 Fan 30x30x10 mm Dual Ball Bearing - 14,000 RPM  with JSP SYP Connector (2 pins)

- 2 M3 6mm Screws
- 2 M3 15mm Screws



Also allows the use of any type of fan in different positions in a stable and safe way.

$22.57

Quantity:
BUY IT NOW
Add to cart

- Aluminum Holder Specifications:



Company:                      Eccoma

Patent:                           USPTO Patent Pending

Model:                            EspxAAlH

Material:                         Aluminum Alloy 6063 type T6

Anodizing:                     MIL-A-8625F type I

Color:                             Orange anodized

Holder Dimensions:      47x6mm

Base Dimensions:         37x7mm

Weight:                           4.0g

Aerodynamic angle:      30°

Screw Holes:                  M3



Applicable Industries:

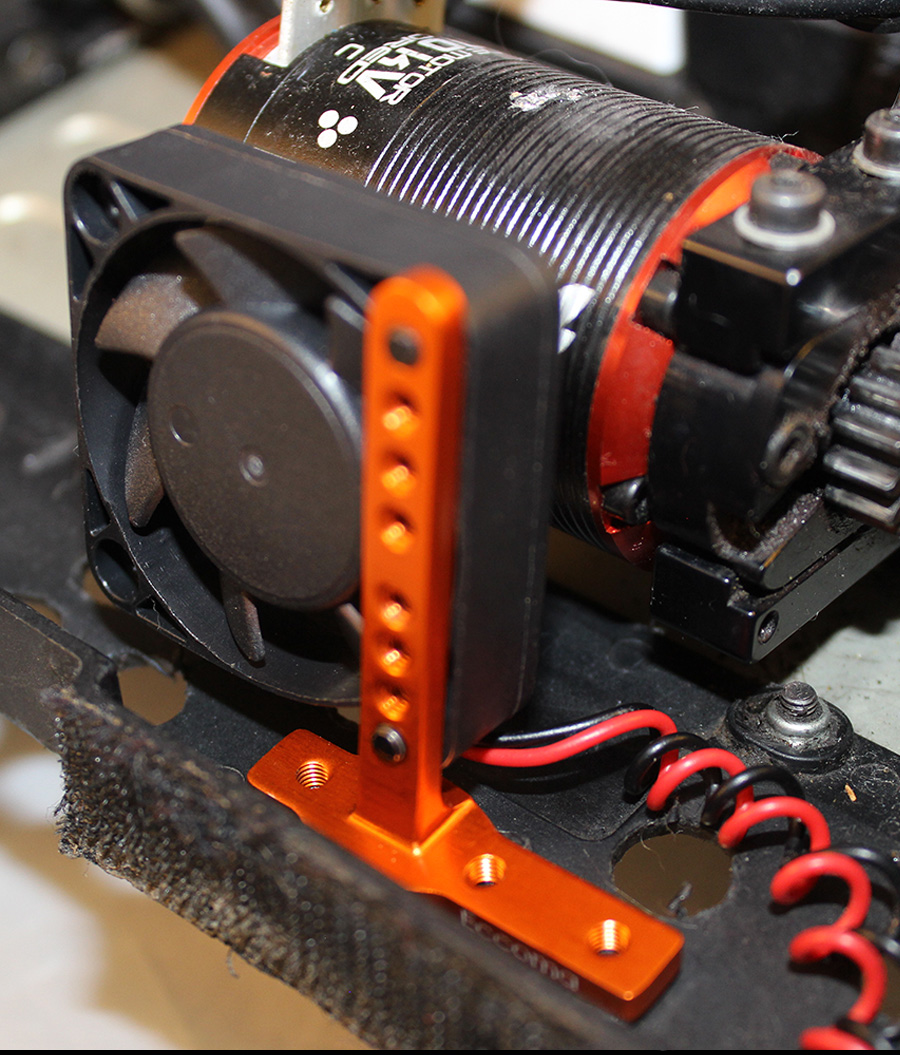

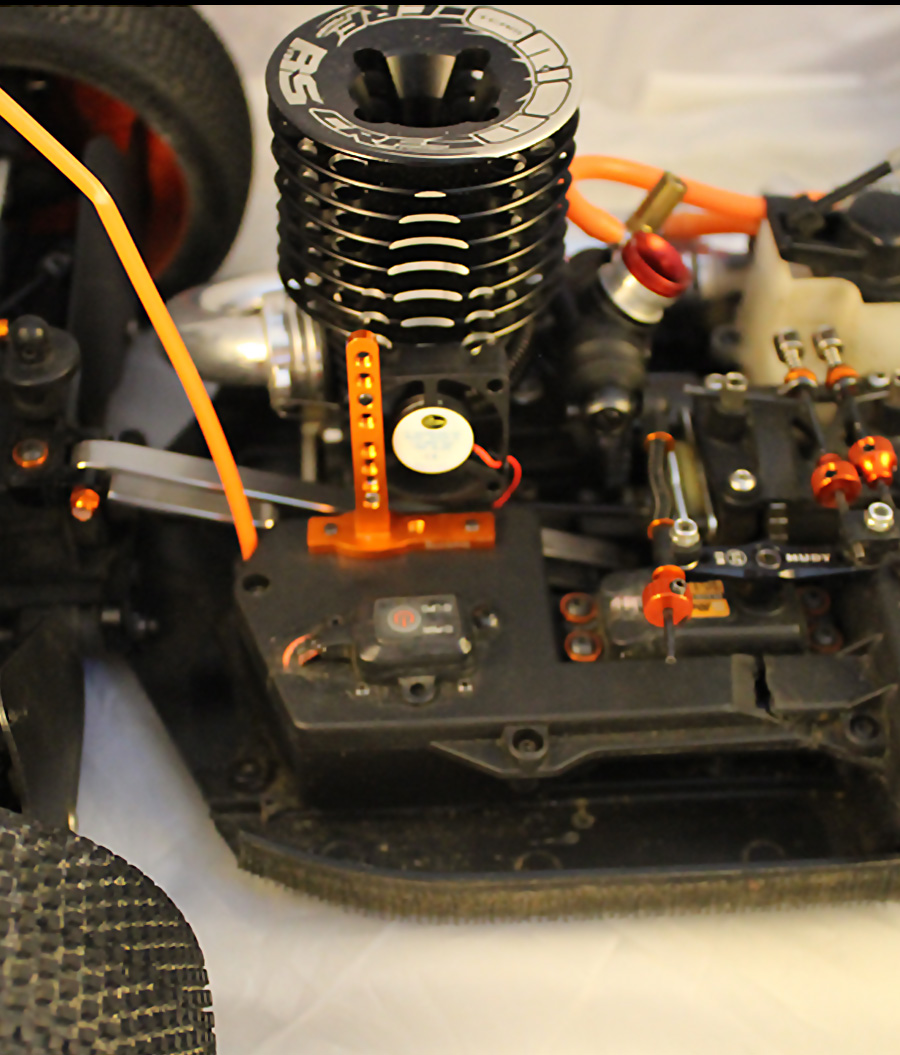

 -  Servers, 3D printers, RC vehicle's motor.

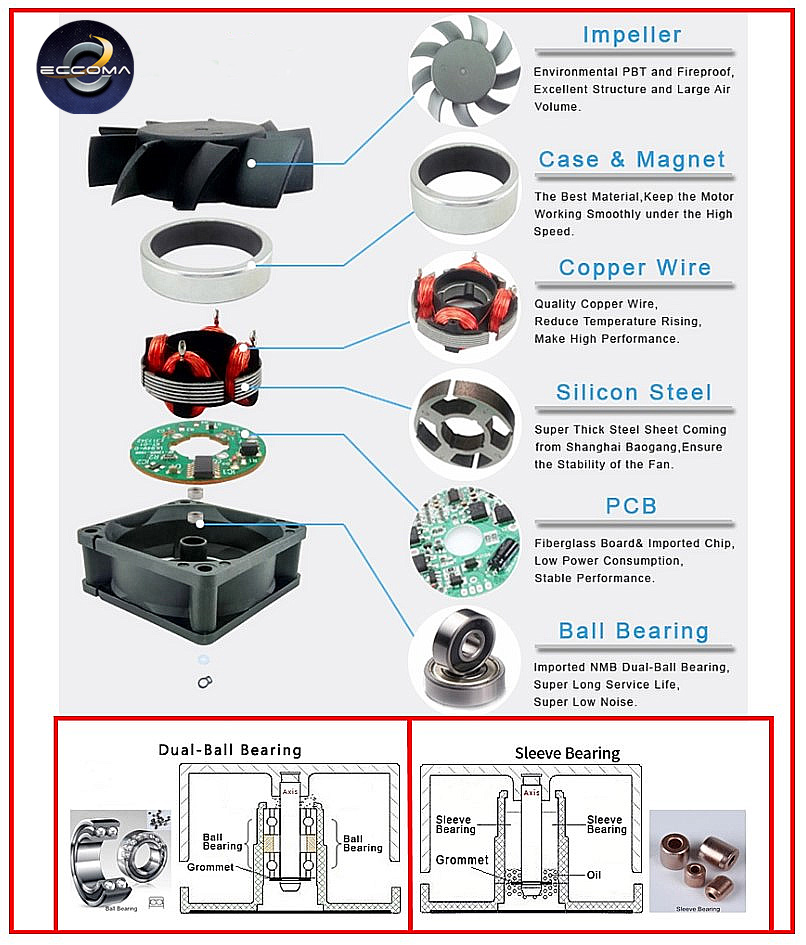

- Fan 30x30x10 mm.  Specifications:



Company:                                 Eccoma

Type:                                         Axial Flow Fan

Model:                                       3010DC

Dimensions:                             30x30x10mm ± 0.3

Frame & Impeler Material:      UL94V-0

Blade Material:                         PBT

Bearing Type:                           Dual Ball Bearing

Operating:                                Voltage 5V to 8.75V

Power:                                      1.40W

Current:                                    0.28A

Fan Speed:                               approx. 14,000 RPM after 3 minutes of rotation

Max Air Flow:                           7.1 CFM

Max Air Pressure:                    11.0 mmH2O

Noise Level:                             38dbA

Operation Temperature:          -10°C to 70°C

Weight:                                     8.0g

Cable:                                       Length:2 wires +Red -Black 150mm

Connector:                               JST (B1) / 2.54mm JST SYP (2 Pin)

Life Time:                                 50000 hours

Certification:                            CCC,CE,ROHS



Applicable Industries:

 -   Manufacturing Plant, Farms, Restaurants, Food Shoop, Energy & Mining, Servers, 3D printers….
